6.7 engine replacement

[blacksnapon]

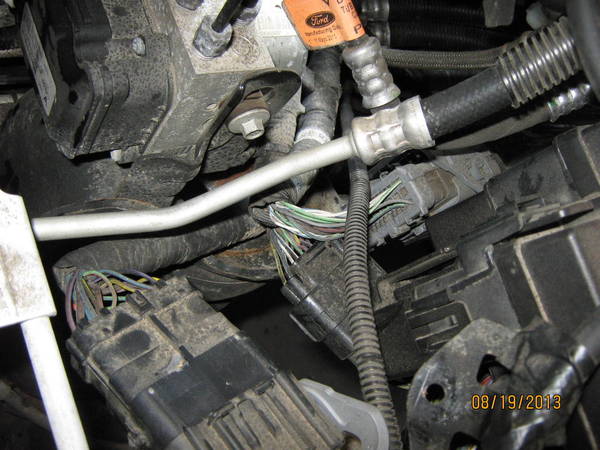

remove 3 connectors below master cylinder



[blacksnapon]

remove the big p/s line



[blacksnapon]

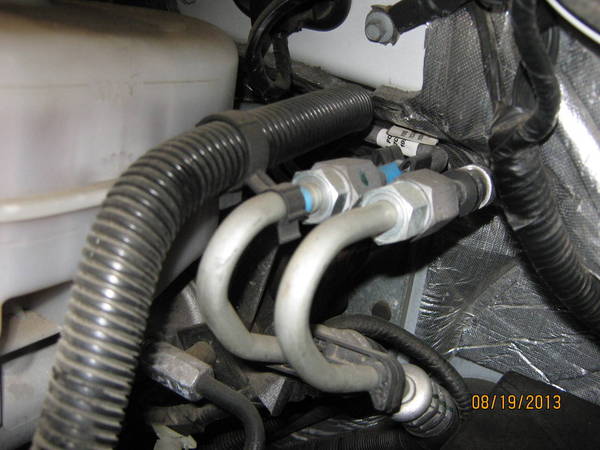

remove 2 hydro boost lines (f550)



[blacksnapon]

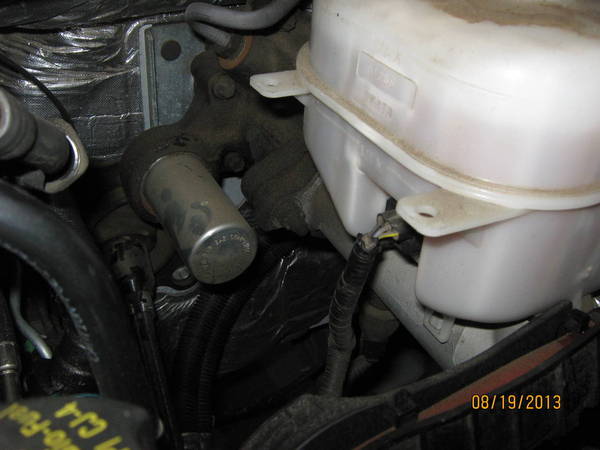

remove master cylinder and connectors



[blacksnapon]

disconnect 2 fuel cooler hoses at t connection



[blacksnapon]

disconnect steering column shaft



[blacksnapon]

disconnect ground strap



[blacksnapon]

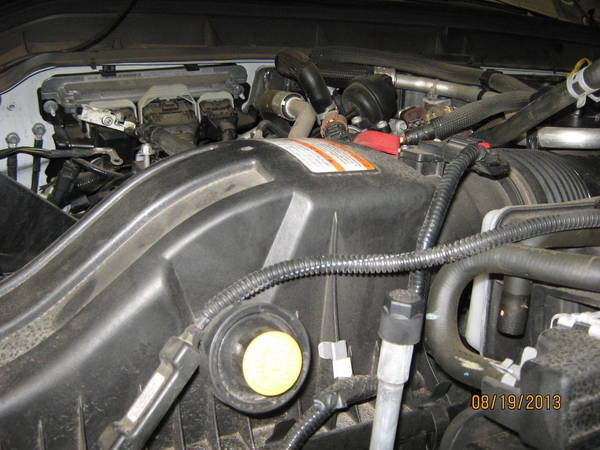

remove air filter box and connectors



[blacksnapon]

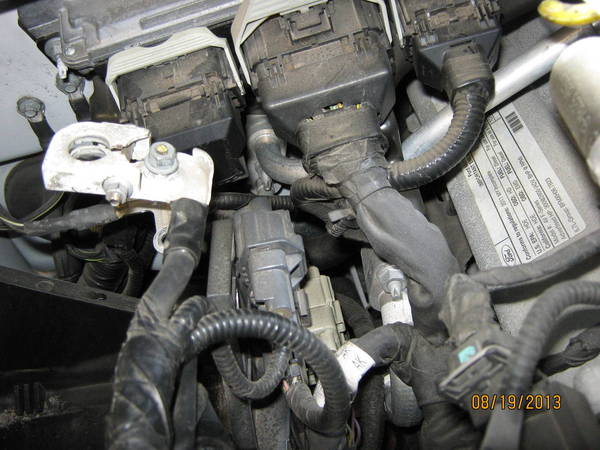

disconnect 2 right side pcm connectors and 5 below them



[blacksnapon]

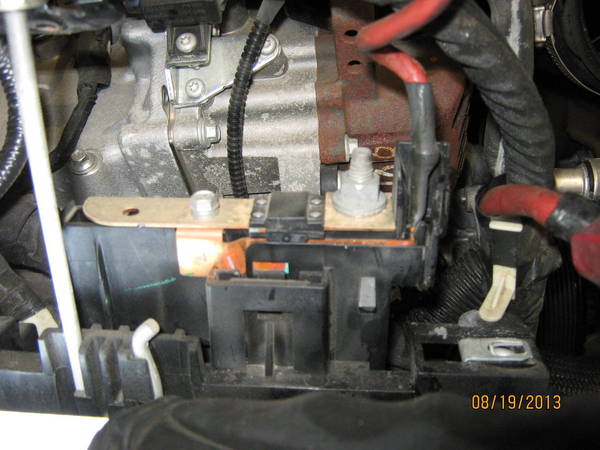

disconnect large battery cable



[blacksnapon]

a/c line to condenser



[blacksnapon]

heater hose disconnect



[blacksnapon]

2 egr cooler hoses



[blacksnapon]

disconnect egr vent hose



[blacksnapon]

hose at pass water pump



[blacksnapon]

disconnect coolant line



[blacksnapon]

a/c evaporater to compressor



[blacksnapon]

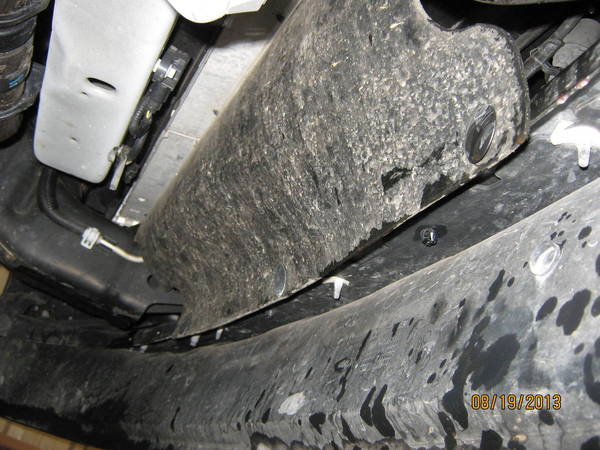

shield under bumper



[blacksnapon]

lower radiator hose



[blacksnapon]

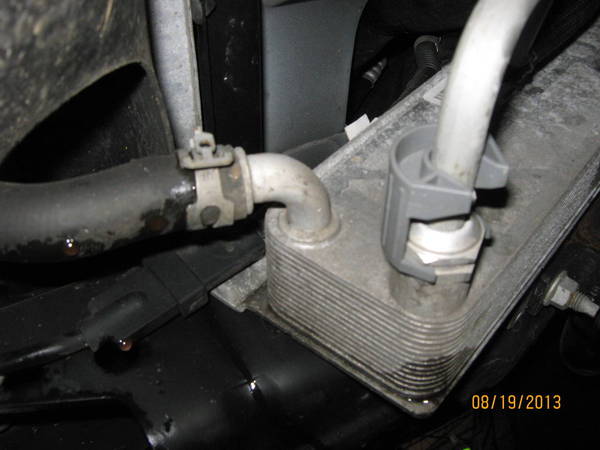

left fuel cooler hose
