6.4 headgaskets and high pressure fuel pump how to

[blacksnapon]

bottom bolt oil supply tube for turbo



[blacksnapon]

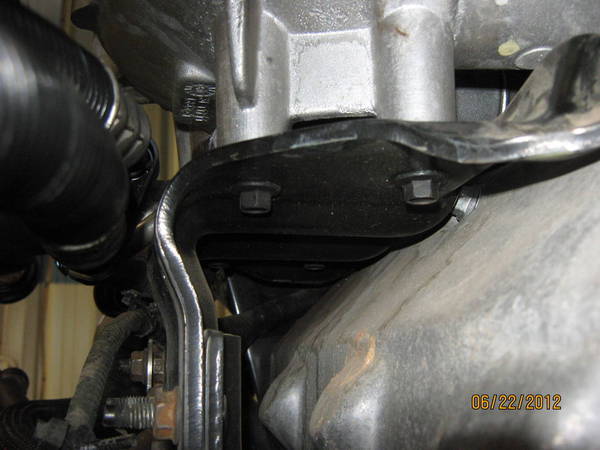

4 bolts bottom of fuel/turbo cooler



[blacksnapon]

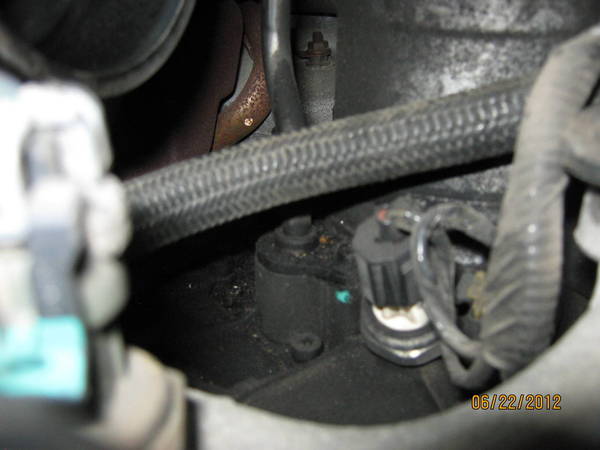

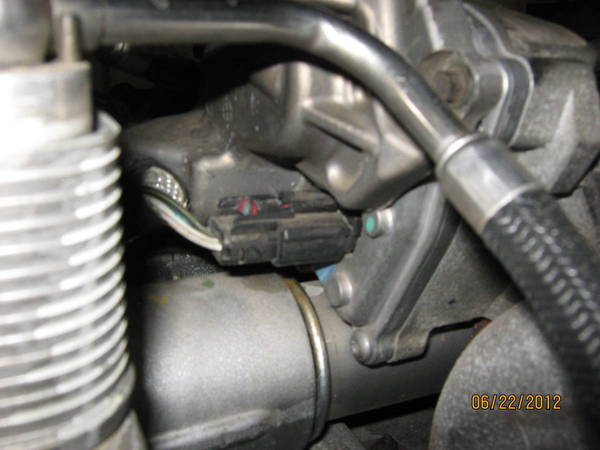

turbo actuator connector



[blacksnapon]

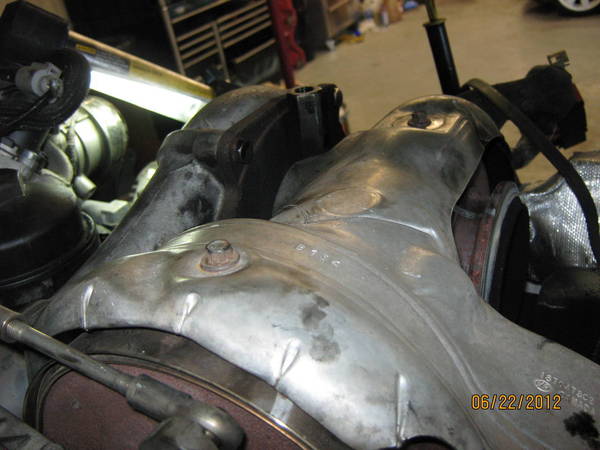

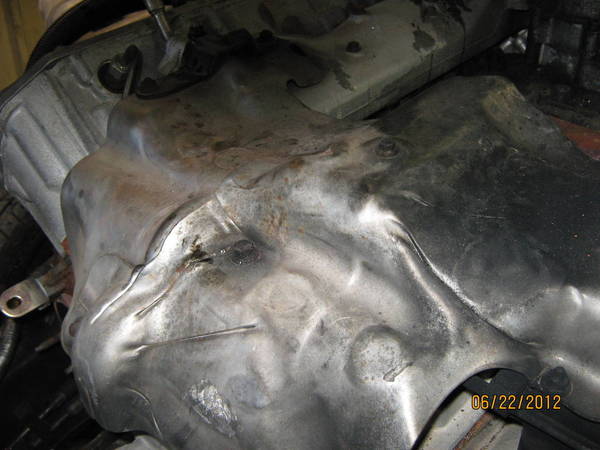

5 bolts turbo heat shield



[blacksnapon]

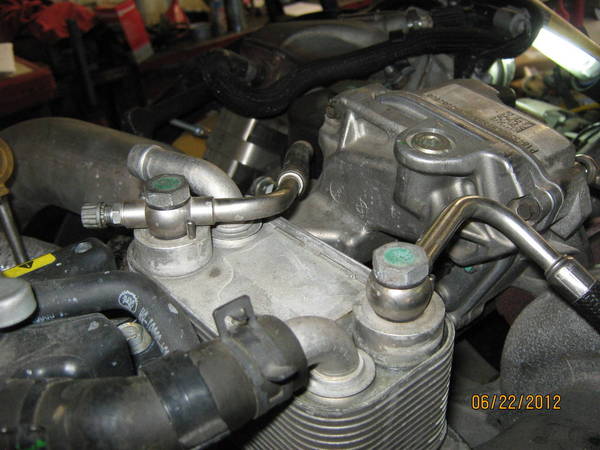

fuel lines on fuel cooler



[blacksnapon]

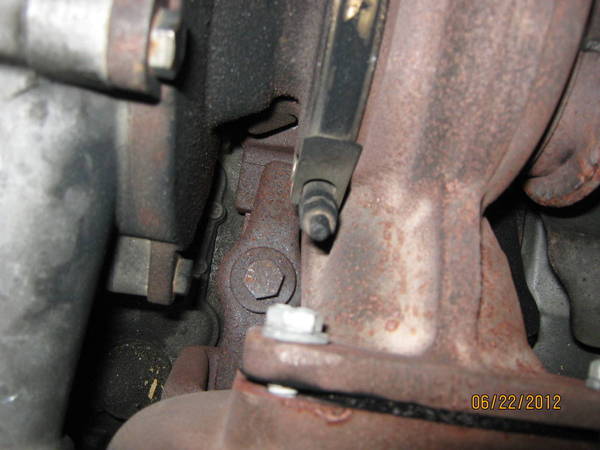

2 turbo hold down bolts, remove turbo

Careful with the oil drain tubes, driver side is easy to break/bend out of shape.



[blacksnapon]

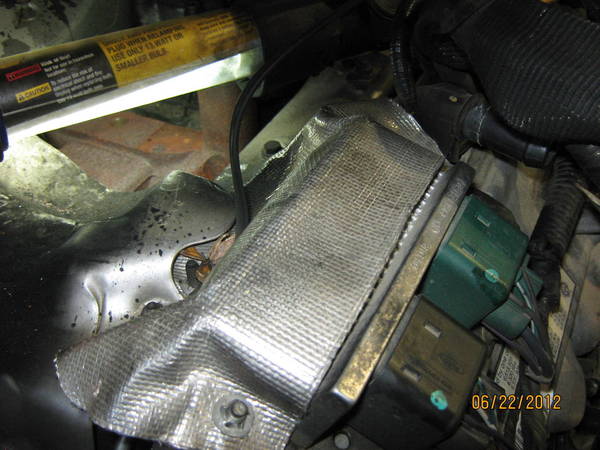

glow plug module heat shield



[blacksnapon]

heat shields over high pressure fuel pump



[blacksnapon]

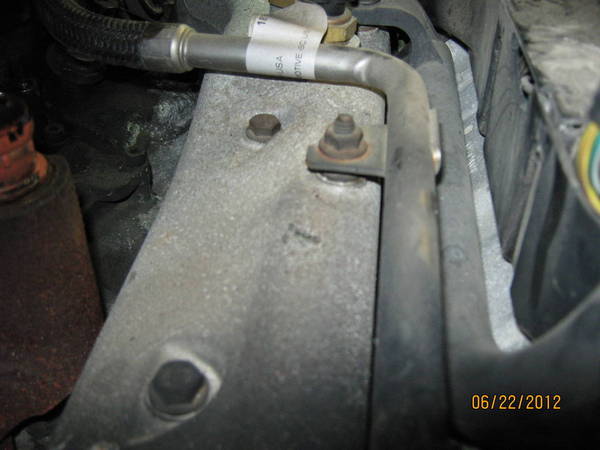

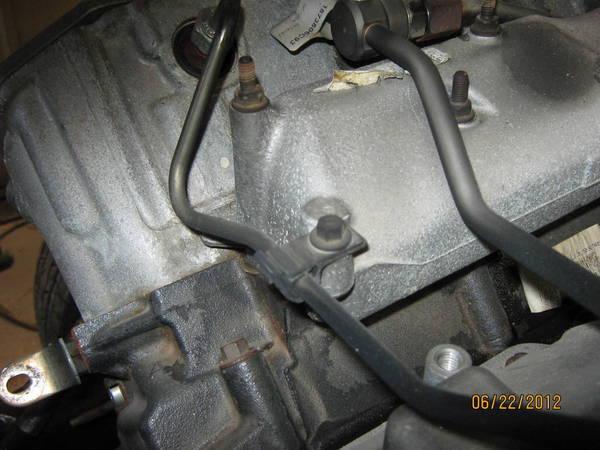

bolts for the 2 fuel lines rear of cyl heads



[blacksnapon]

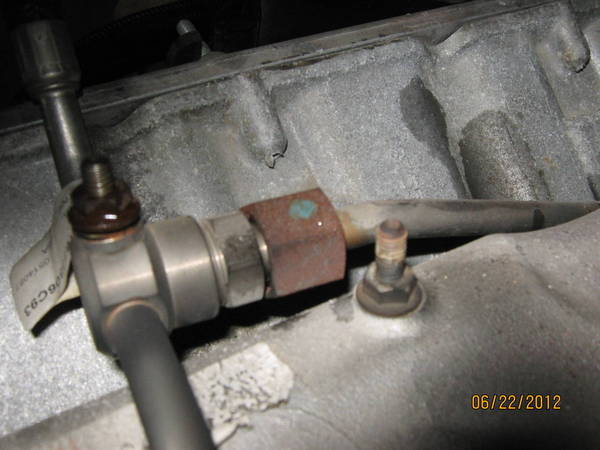

nut on check valve (fuel return)



[blacksnapon]

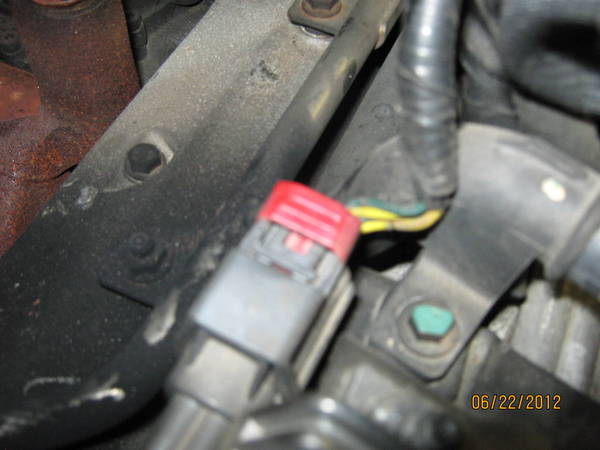

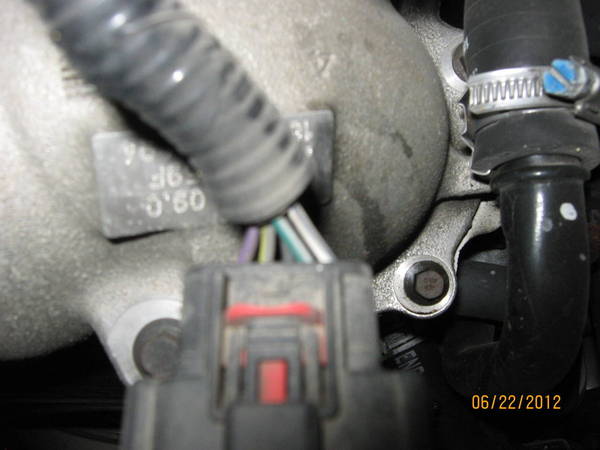

connector for high pressure fuel pump



[blacksnapon]

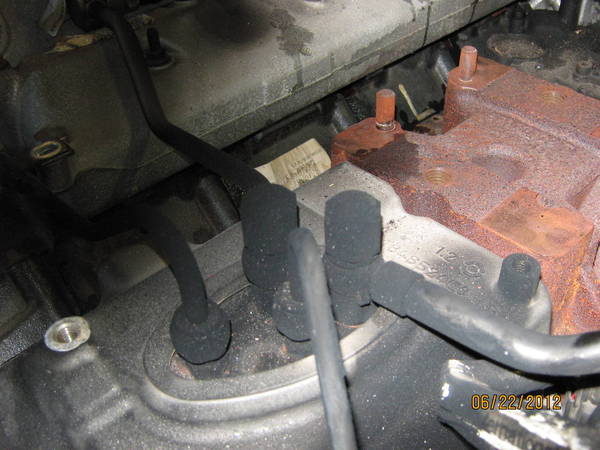

remove fuel lines (high pressure fuel pump)



[blacksnapon]

2 nuts on fuel line



[blacksnapon]

cooling fan connector



[blacksnapon]

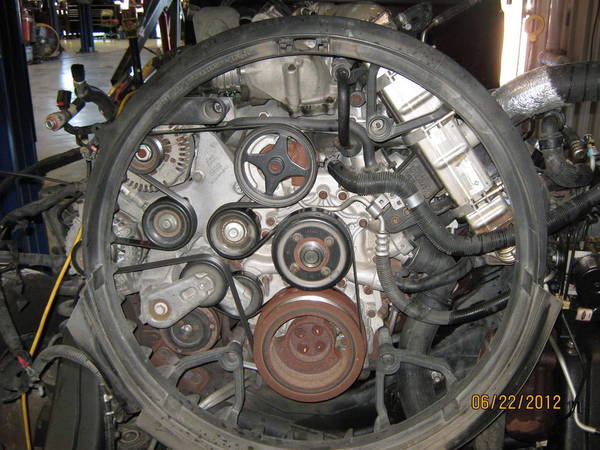

remove fan and stator



[blacksnapon]

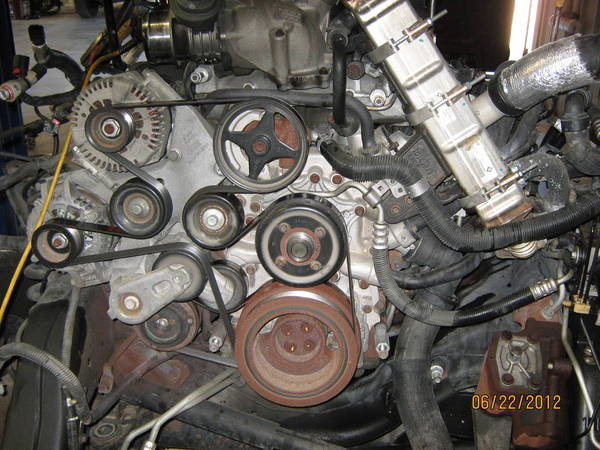

remove serpentine belt



[blacksnapon]

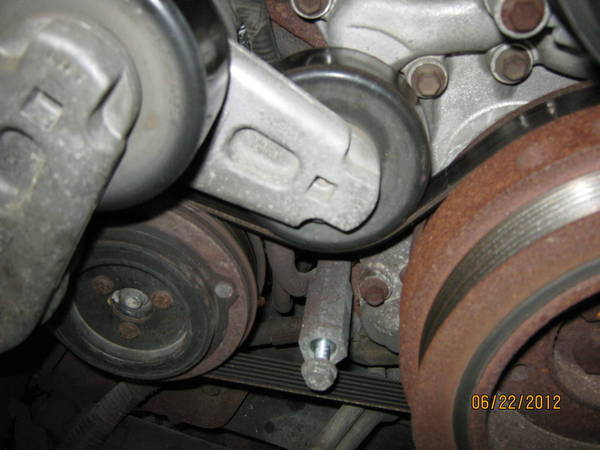

remove ac belt



[blacksnapon]

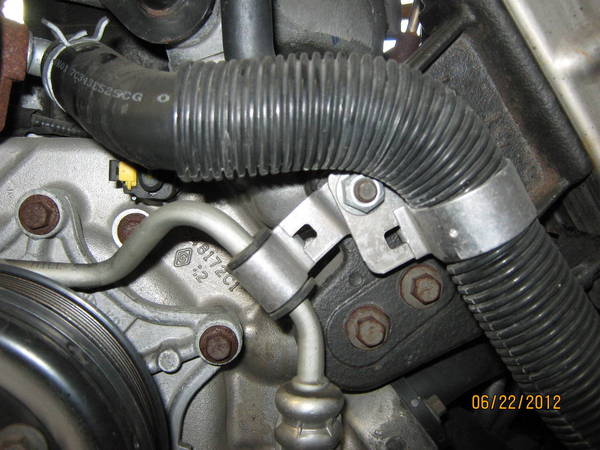

remove retainer nut for ps lines



[blacksnapon]

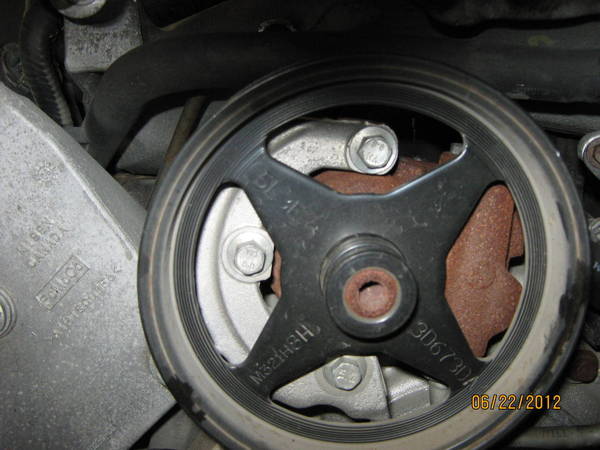

3 bolts in ps pump



[blacksnapon]

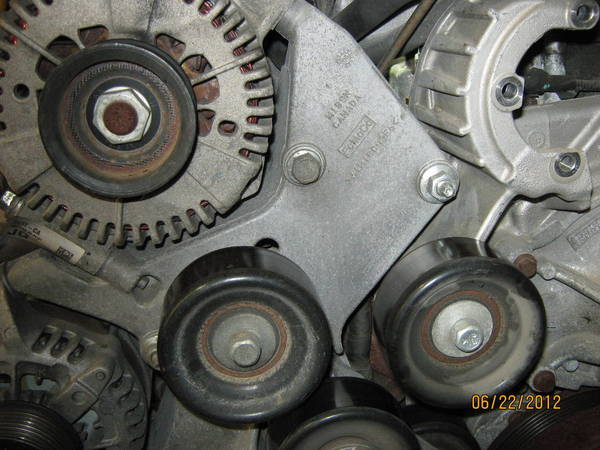

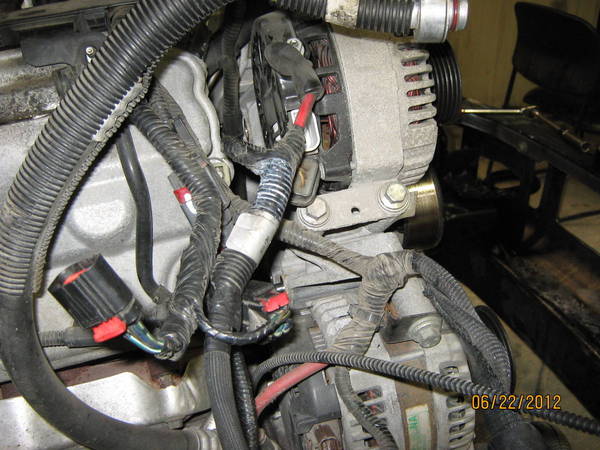

2 bolts, 2 nuts and remove alt wires, then entire bracket
