6.4 headgaskets and high pressure fuel pump how to

[blacksnapon]

Looks like I'm going to do this on our dealership car hauler. Who wants pitchers?



[blacksnapon]

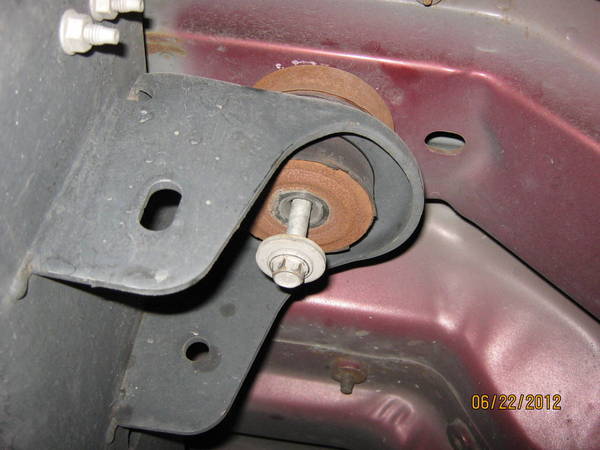

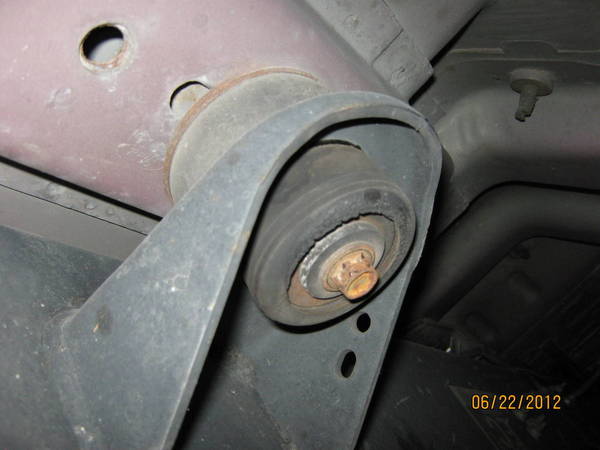

Right rear body mount



[blacksnapon]

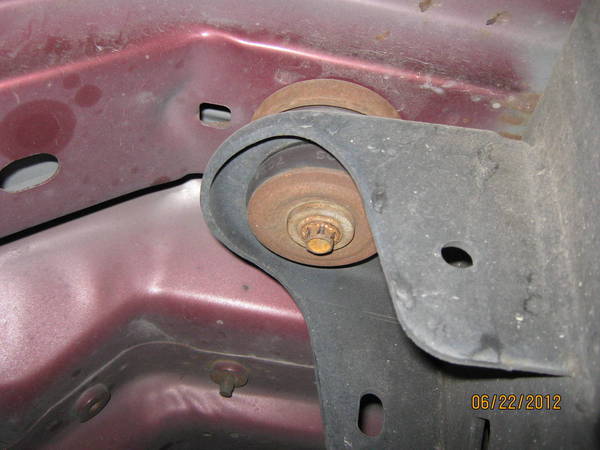

Left rear body mount



[blacksnapon]

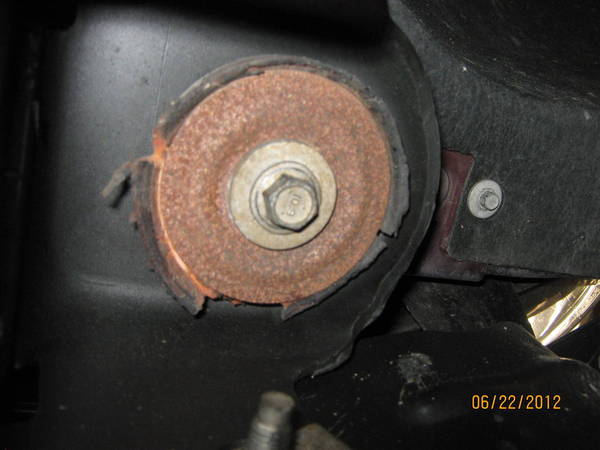

third row body mount



[blacksnapon]

third row mount (driver side)



[blacksnapon]

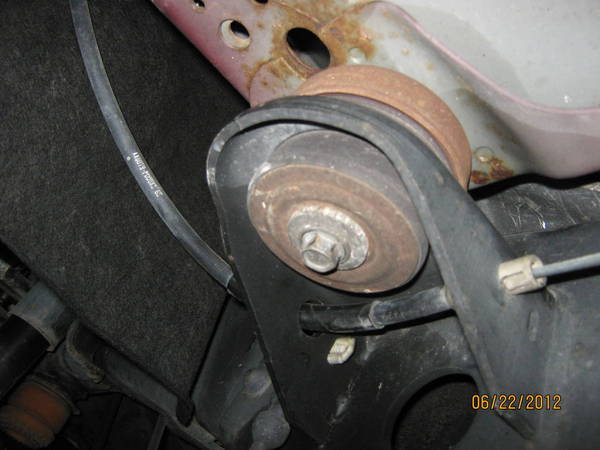

pass side (behind the wheel)



[blacksnapon]

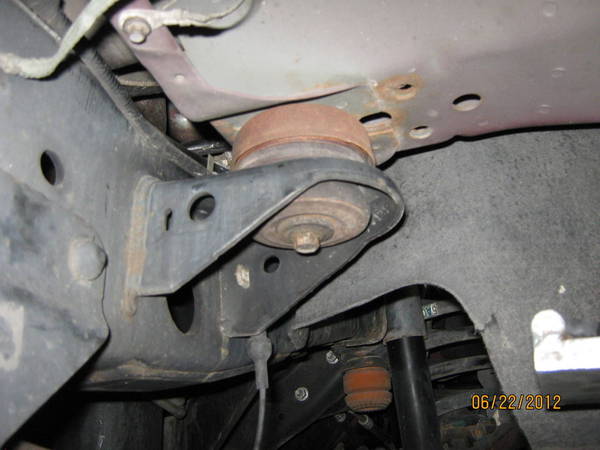

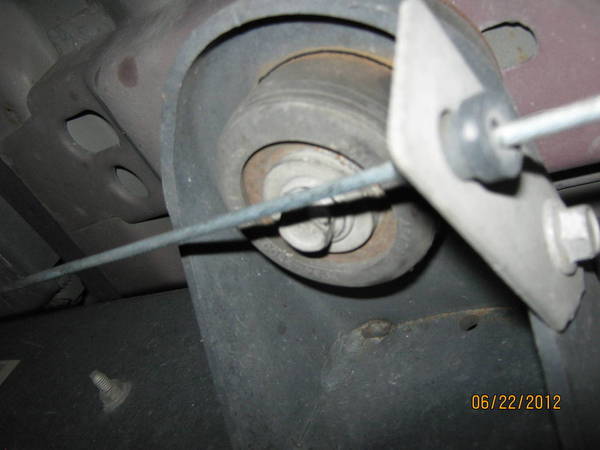

Behind driver front tire



[blacksnapon]

pass side under radiator



[blacksnapon]

driver side under radiator



[blacksnapon]

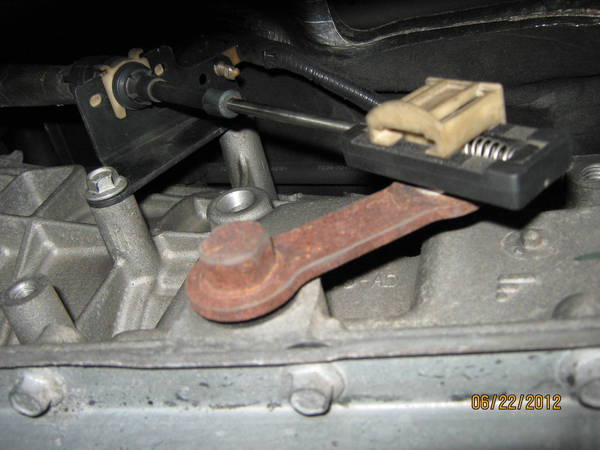

remove shifter and bracket



[blacksnapon]

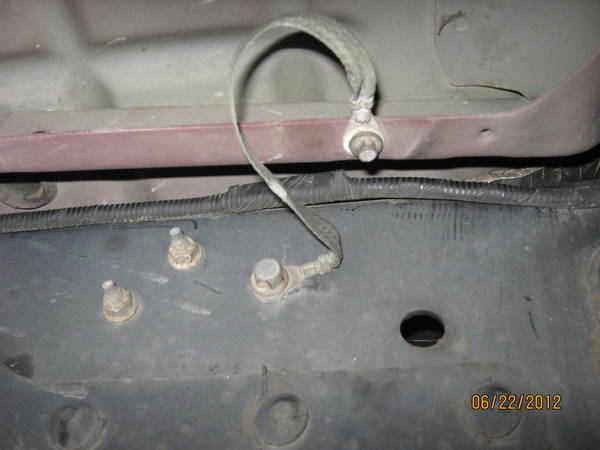

ground pass side



[blacksnapon]

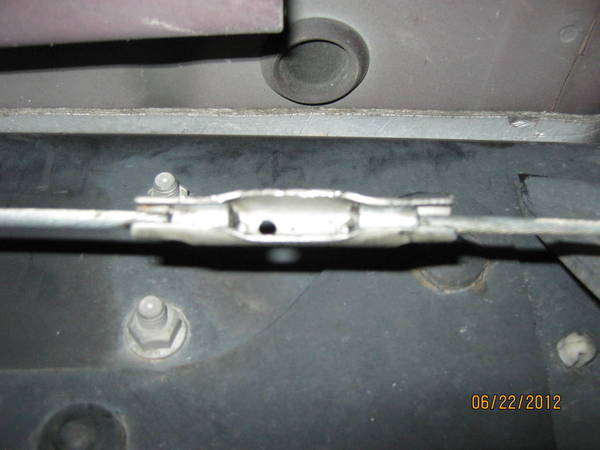

emergency brake



[blacksnapon]

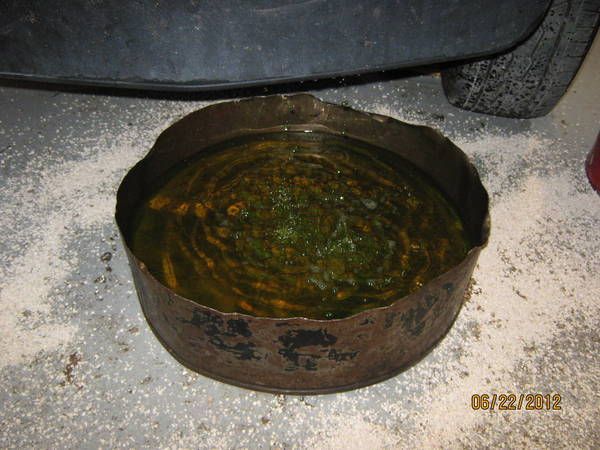

drain coolant



[blacksnapon]

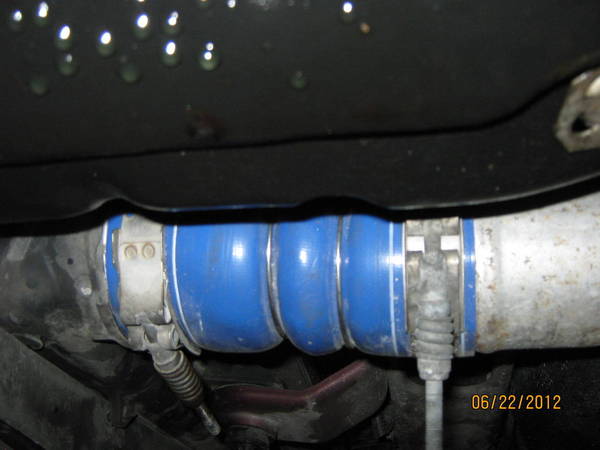

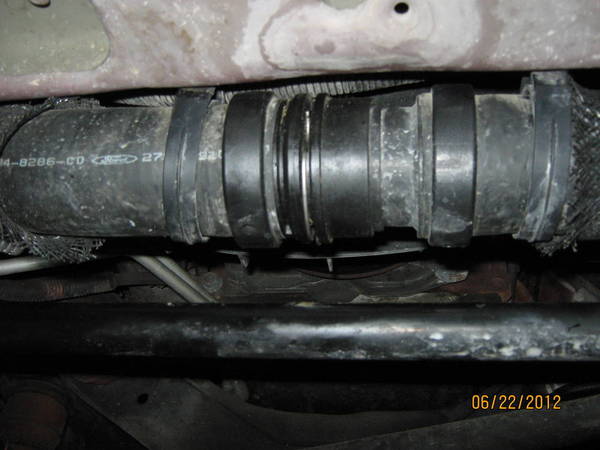

remove lower CAC hose



[blacksnapon]

remove clip and separate lower hose

When you pull this one loose, you are going to get wet, No place to run, no place to hide!



[blacksnapon]

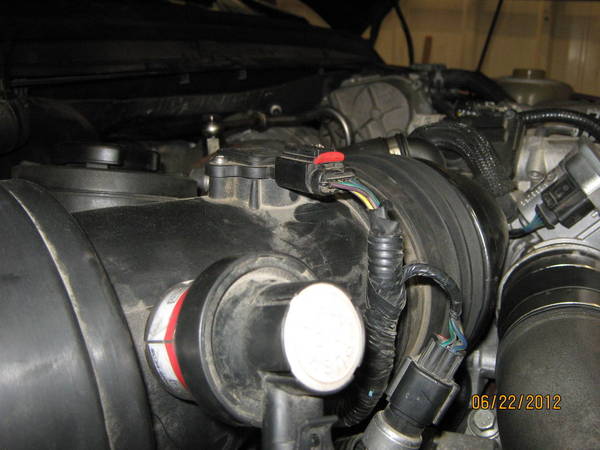

disconnect maf, a/c, and filter minder



[blacksnapon]

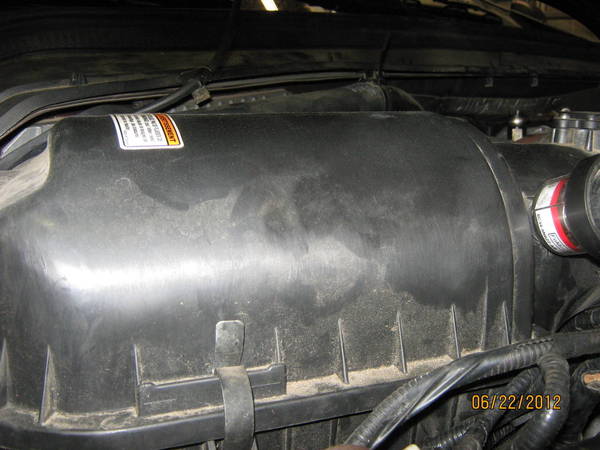

remove air filter housing



[blacksnapon]

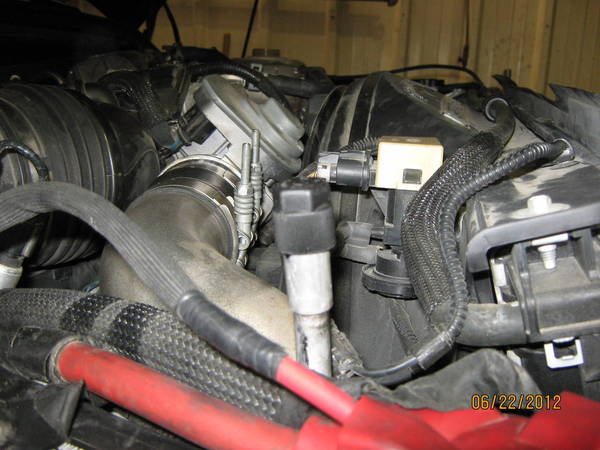

recover freon (low side behind air filter)



[flareside_thunder]

You seem like you'd be a good mentor. I wish I could find a dealer willing to accept an apprentice for diesel tech. School is nice, but nothing beats hands-on. Keep those pictures coming.



[blacksnapon]

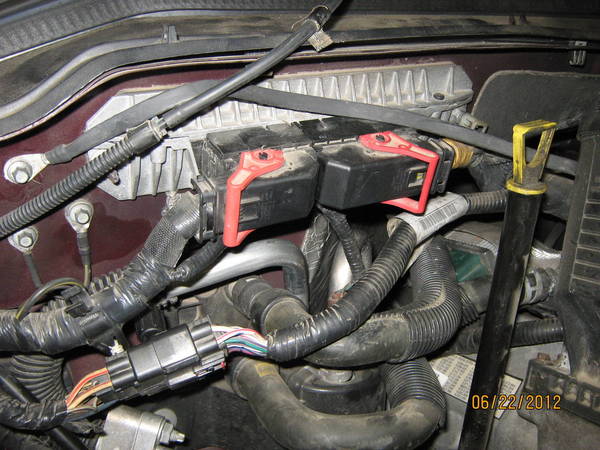

right side pcm connector and connector below and left
