1980 Wiring diagrams

Status
Not open for further replies.

DNFXDLI

The Token Canadian
Staff member

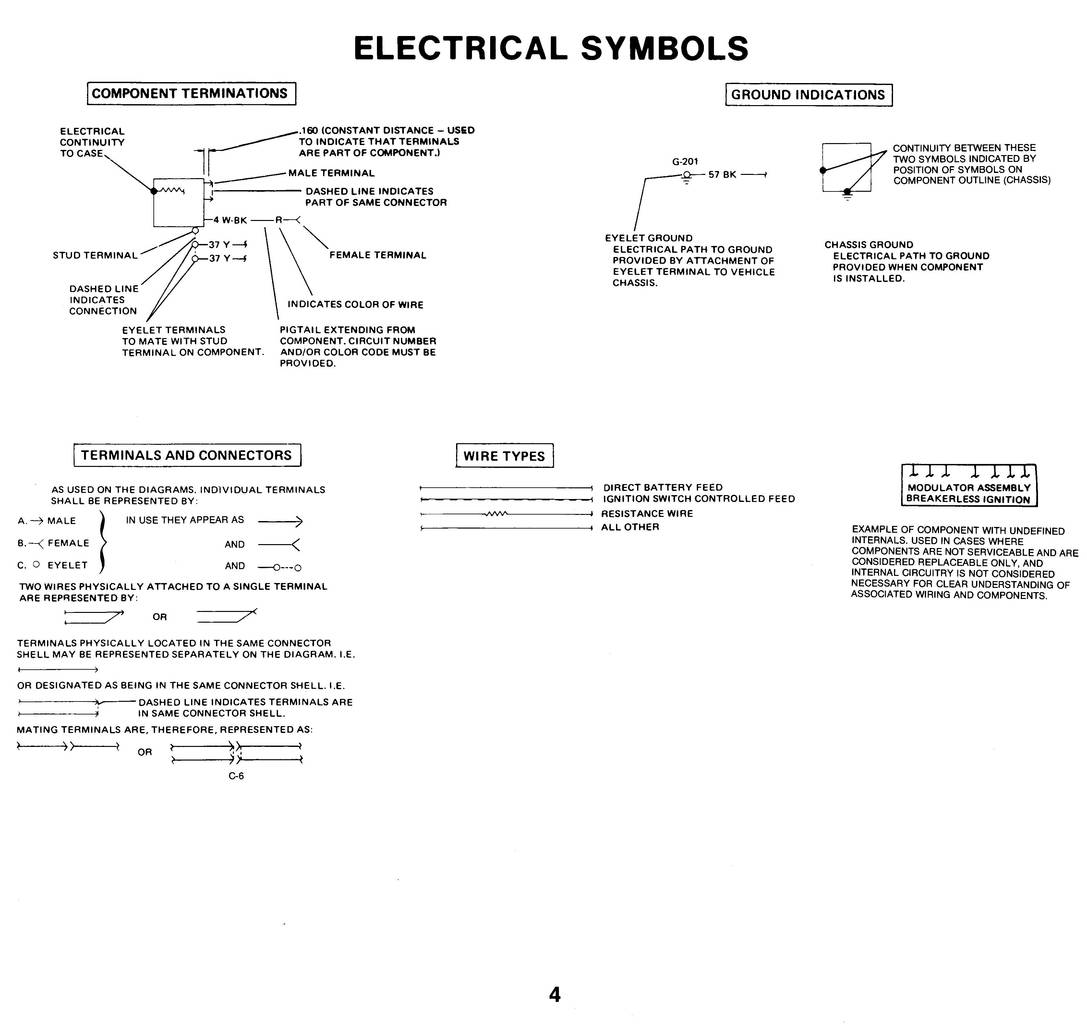

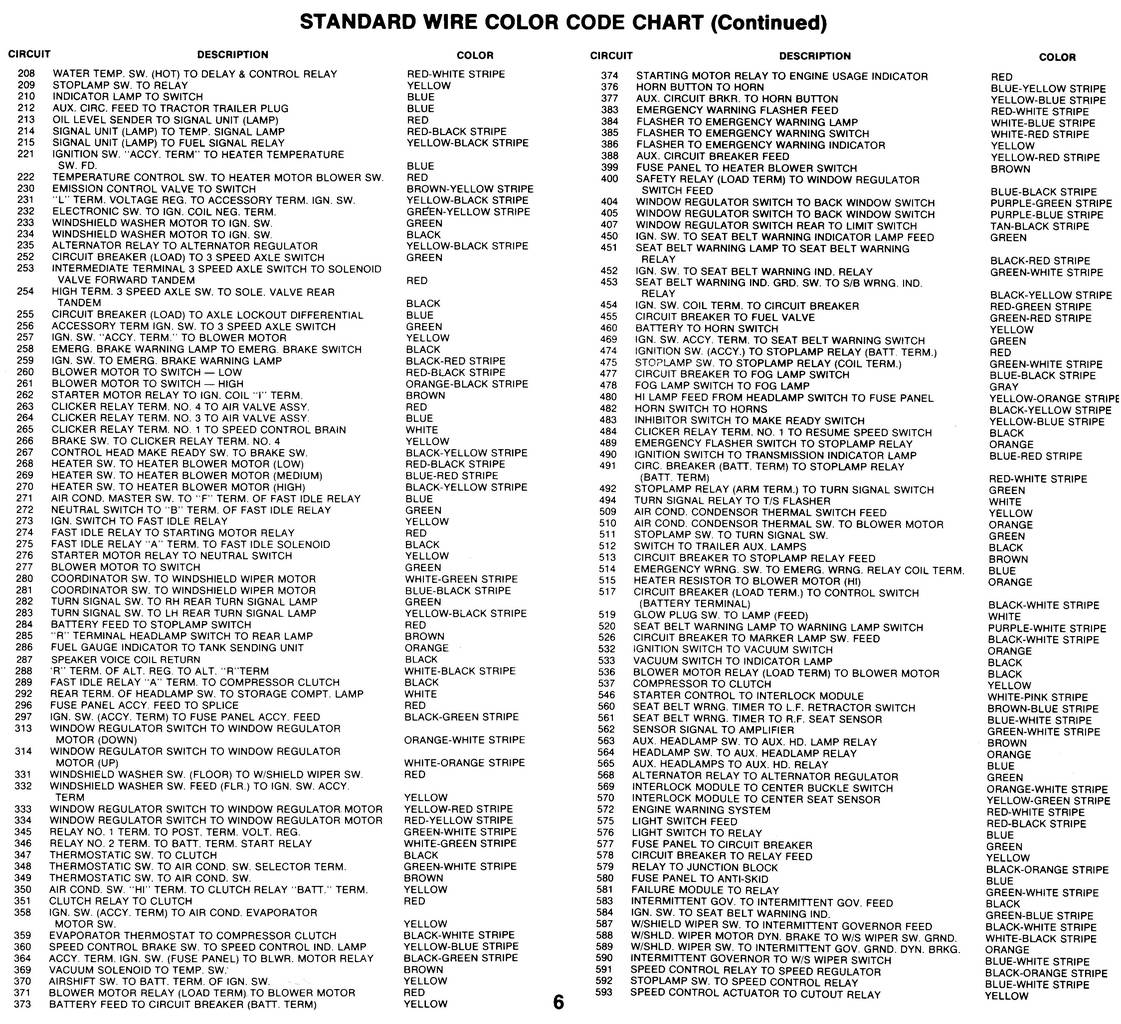

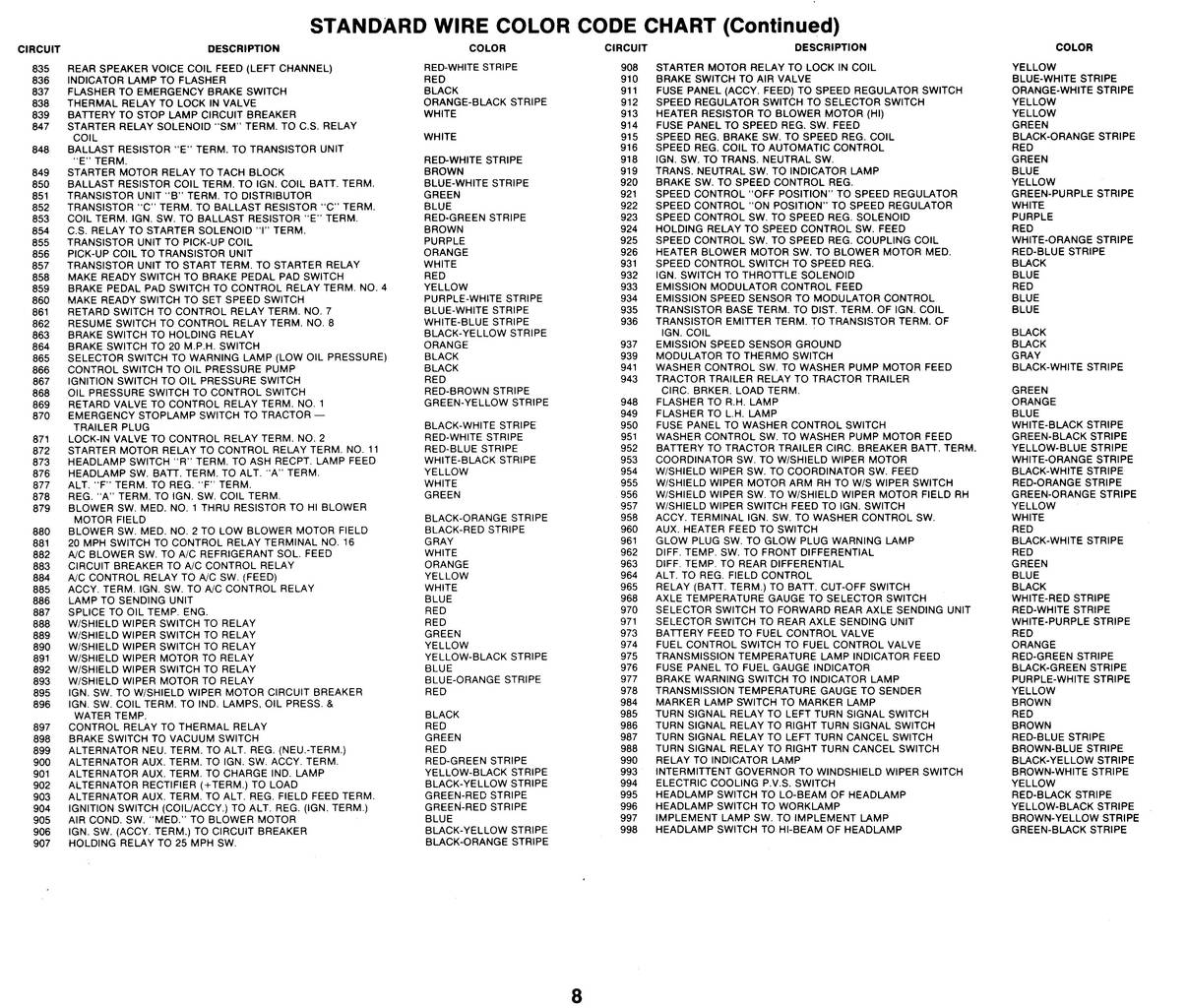

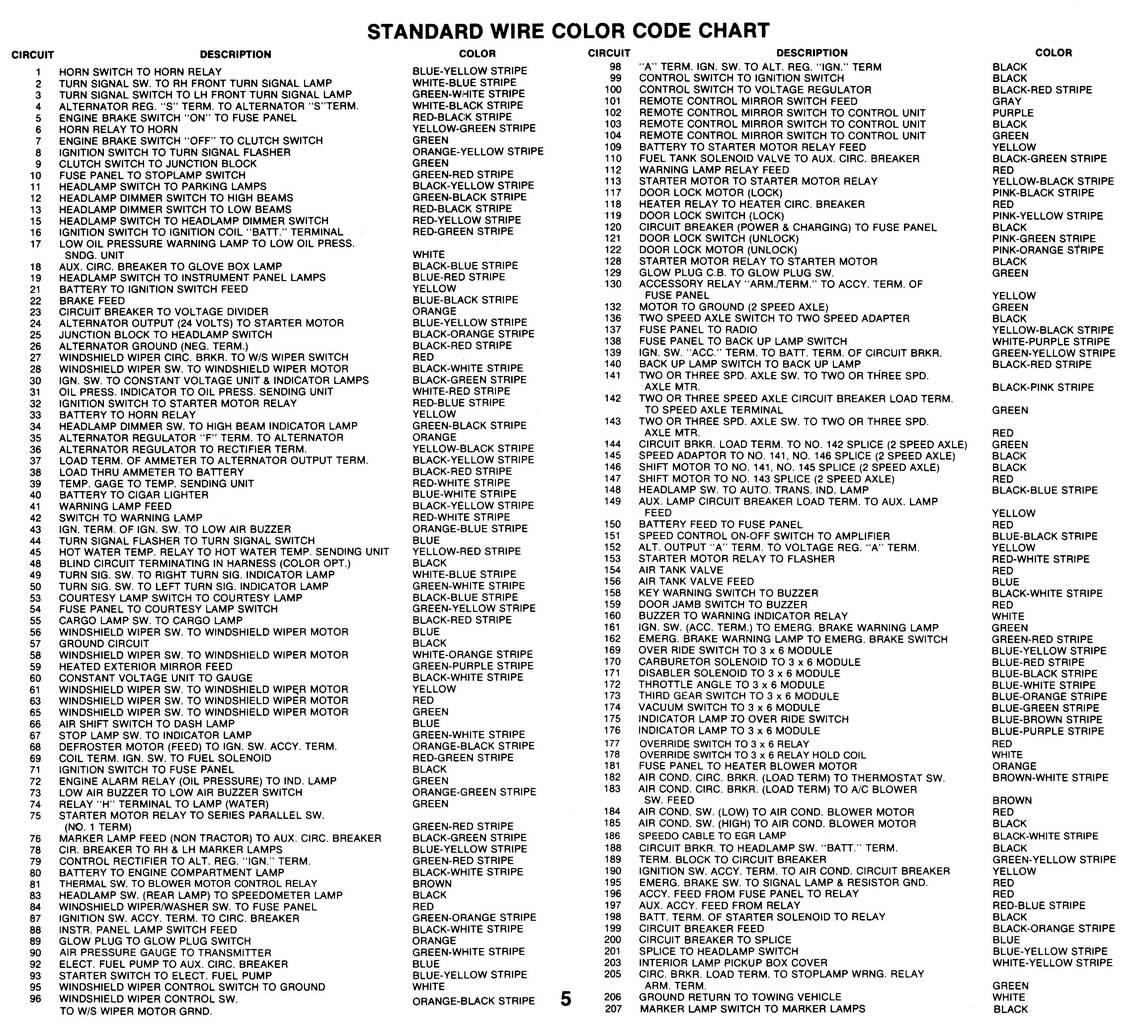

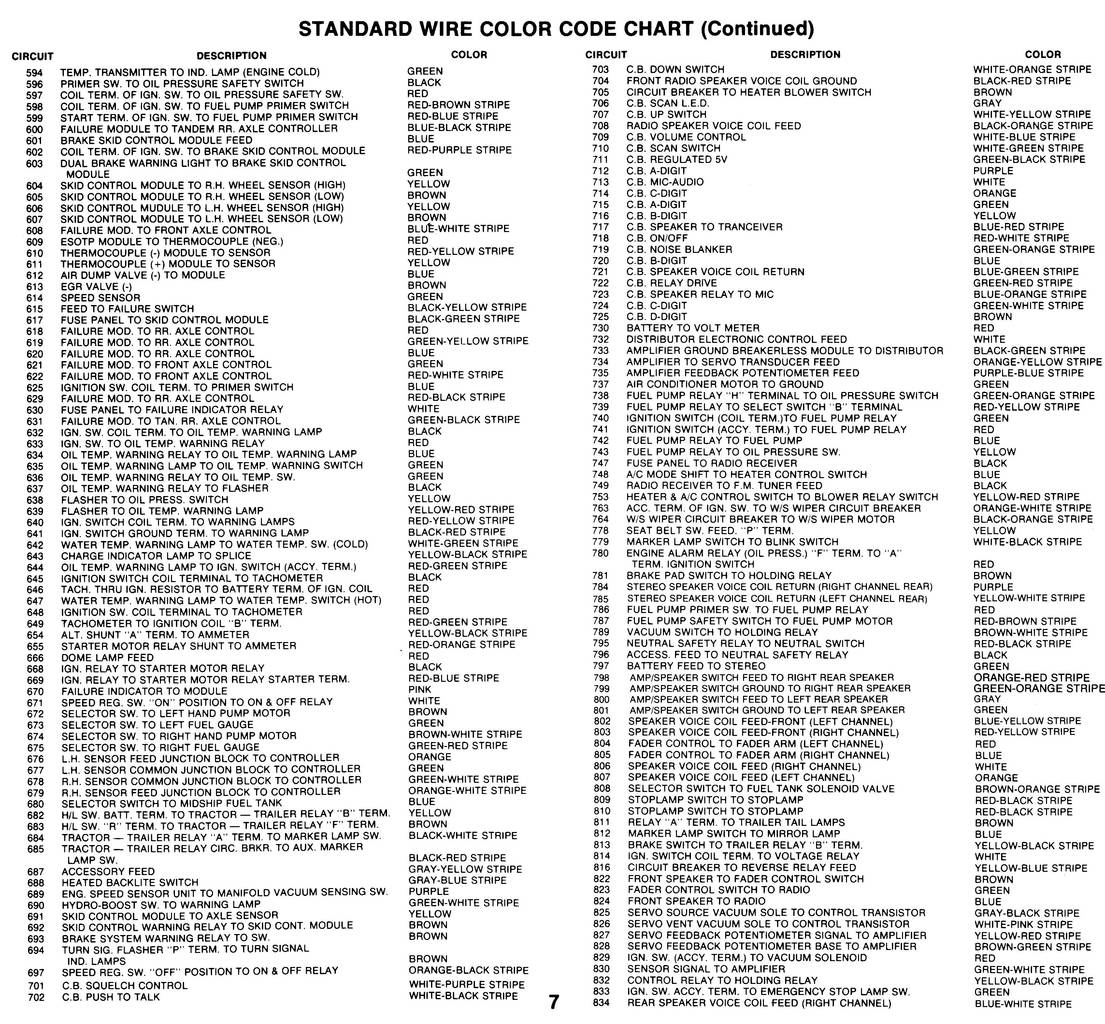

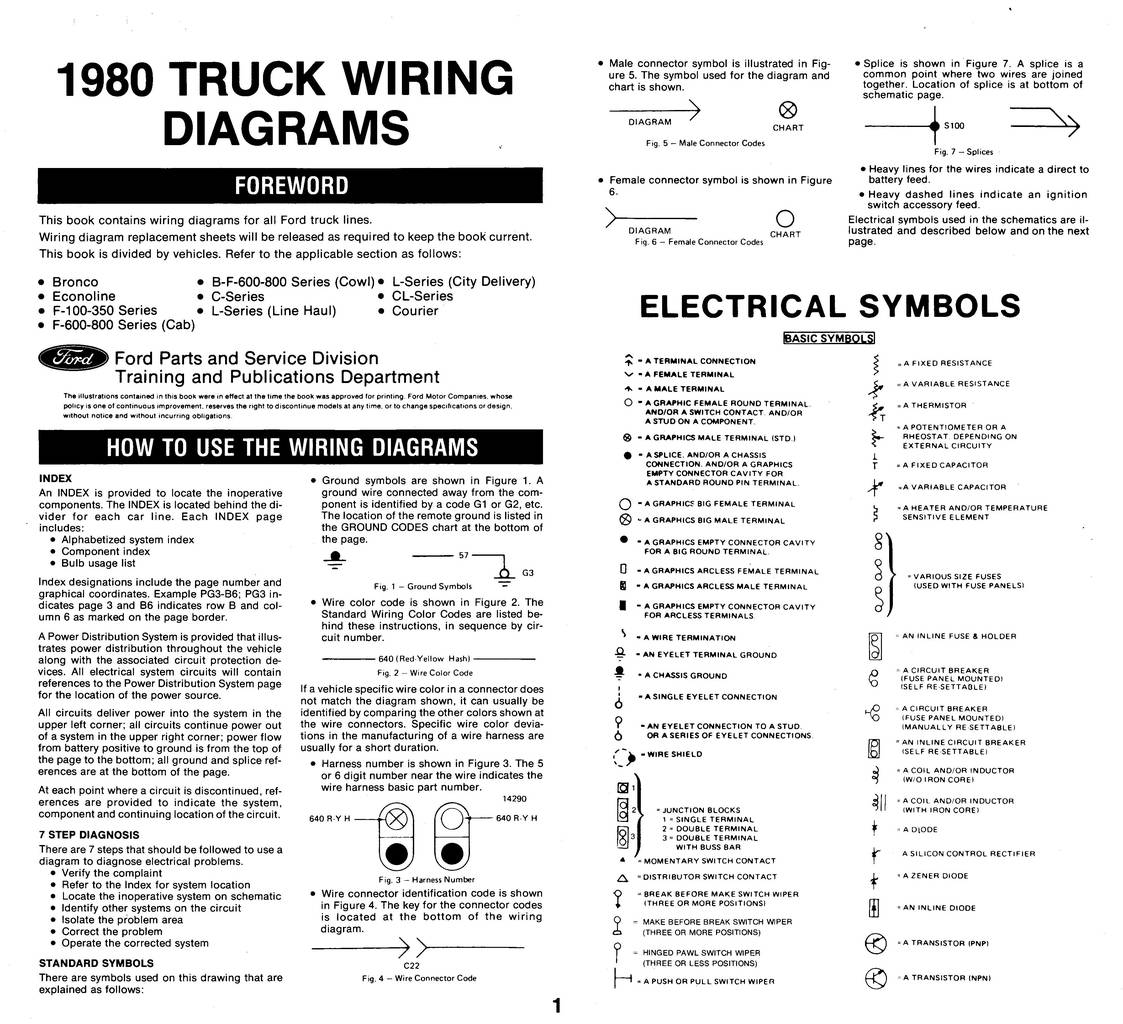

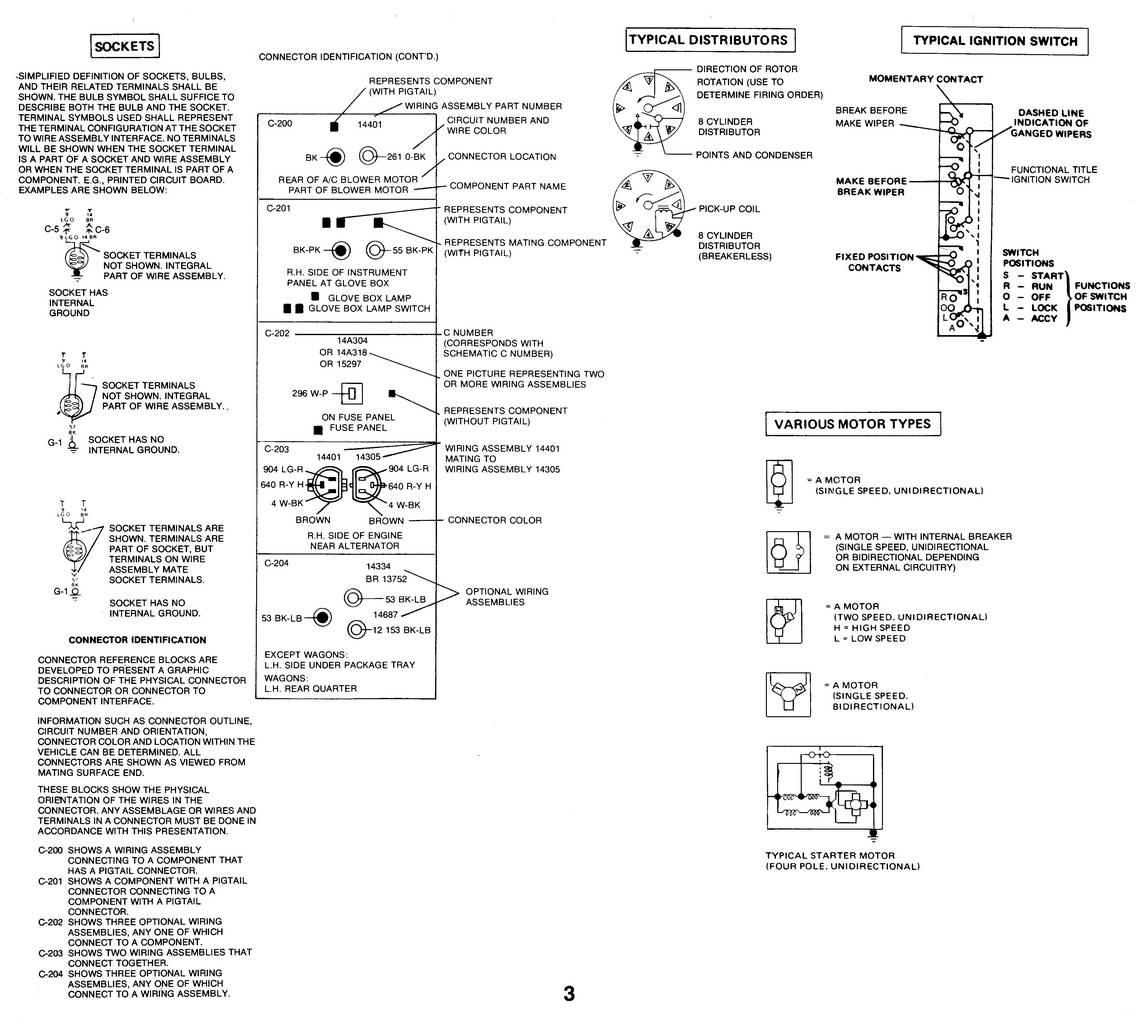

After the initial pages posted, there is a link to the site here for viewing the the actual diagrams. It had to be done this way to be able to view them clearly.

See what page you need from the index and replace "index" in the address bar with the appropriate page.

















http://www.fordtruckfanatics.com/forum/images/1980F150-350wiringdiagrams/1980pageindex.jpg
