I need a wiring diagram for the ignition switch setup on my truck! Putting in a pushbutton start and need to know what wires to snip and re-route...



[blacksnapon]

I need a wiring diagram for the ignition switch setup on my truck! Putting in a pushbutton start and need to know what wires to snip and re-route...

Thats an 02, right?



[lil_dq]

yes sir! thanks



[blacksnapon]

Printer issues, so I did a writeover



[lil_dq]

Hate to be this way vince, but I can't read it bud.



[O'Rattlecan]

Just start completing circuits and see what happens.

Ryan



[lil_dq]

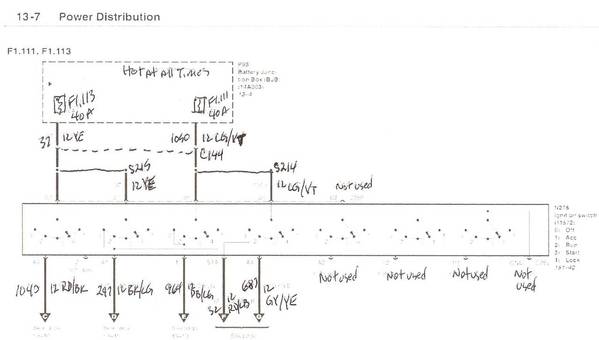

Vince does this look right?



[blacksnapon]

Vince does this look right?

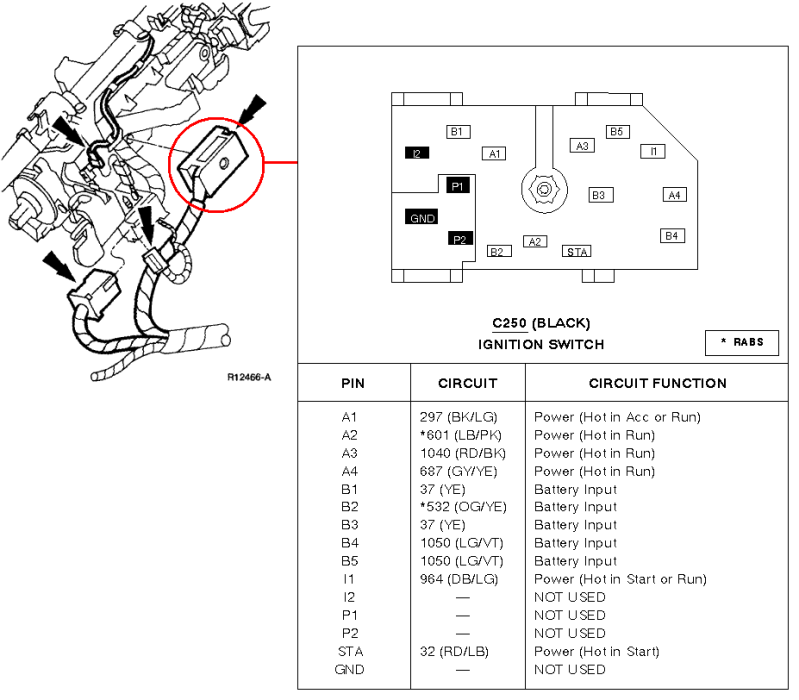

Yeah, on the left side of my diagrams wiring (each wire) there's the circuit number that you can match with your connector.
