6.4 headgaskets and high pressure fuel pump how to

[blacksnapon]

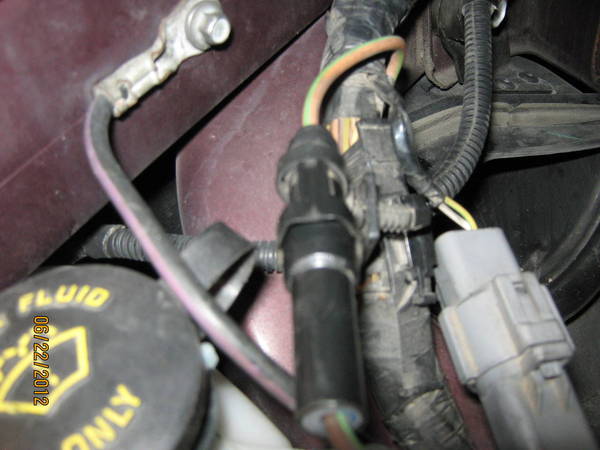

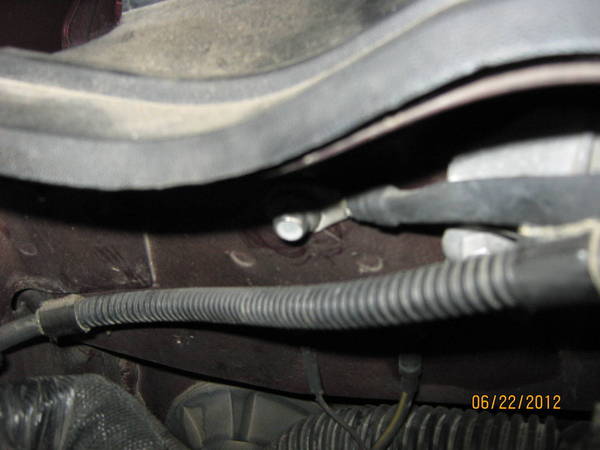

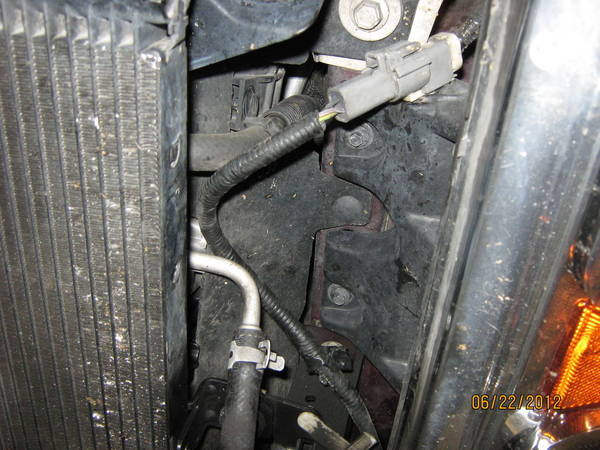

black, gray connectors and fender ground



[blacksnapon]

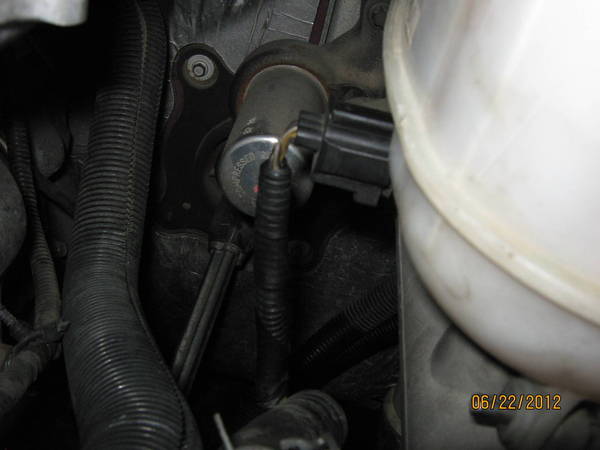

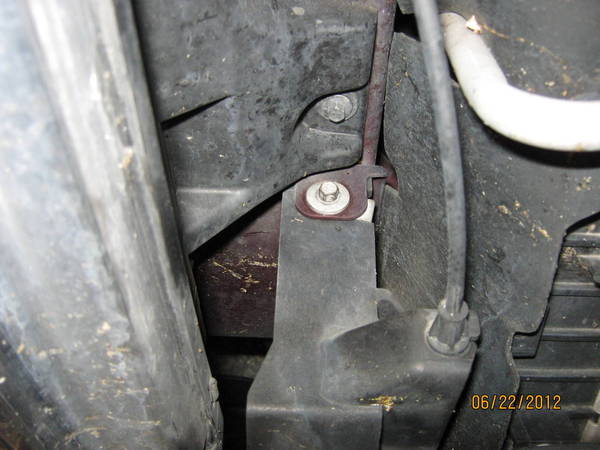

ground behind pcm



[blacksnapon]

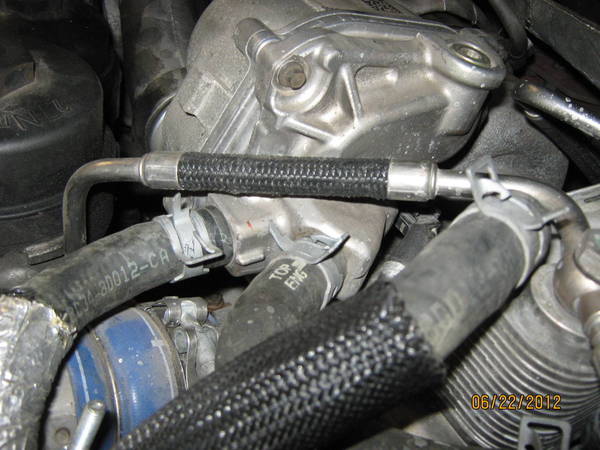

heater hose (pass side)

Careful! That plastic heater hose will break!



[blacksnapon]

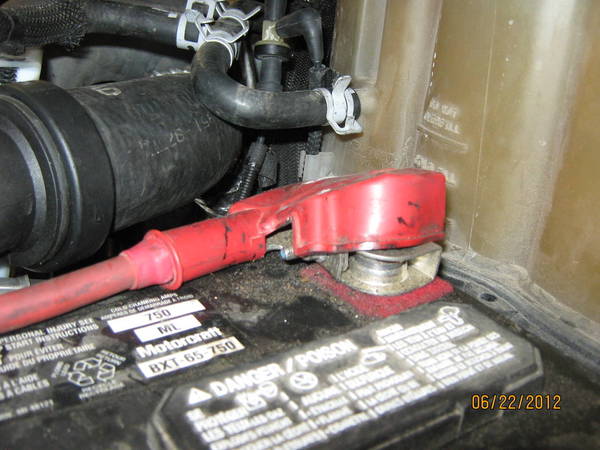

disconnect batteries and connecting cables



[blacksnapon]

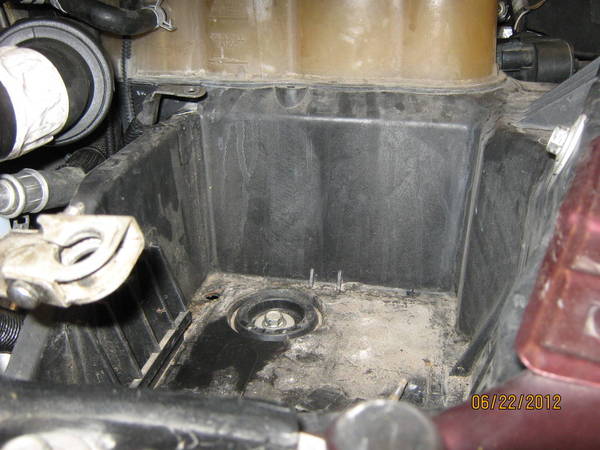

driver side battery and tray



[blacksnapon]

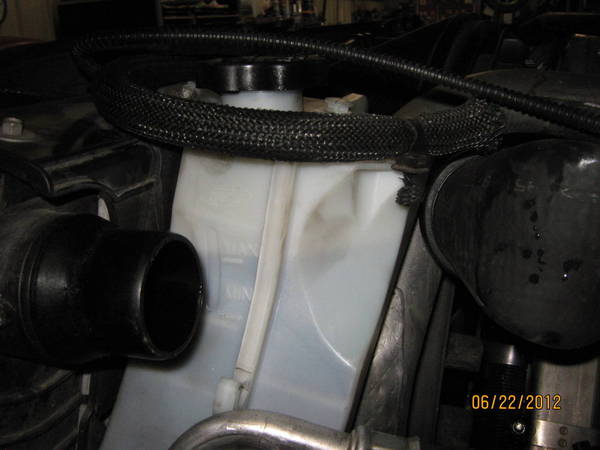

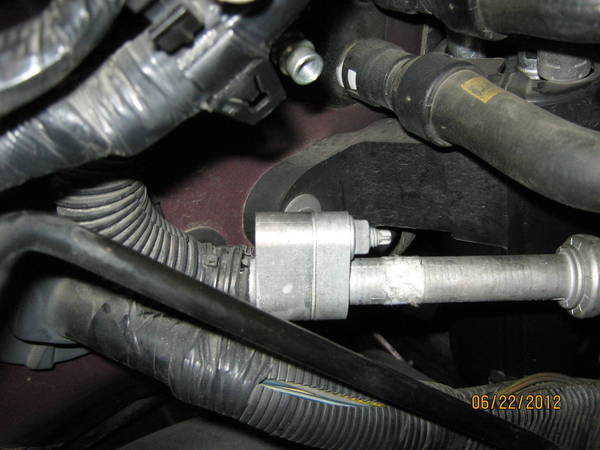

remove/disconnect ac line and wires from pass battery tray



[blacksnapon]

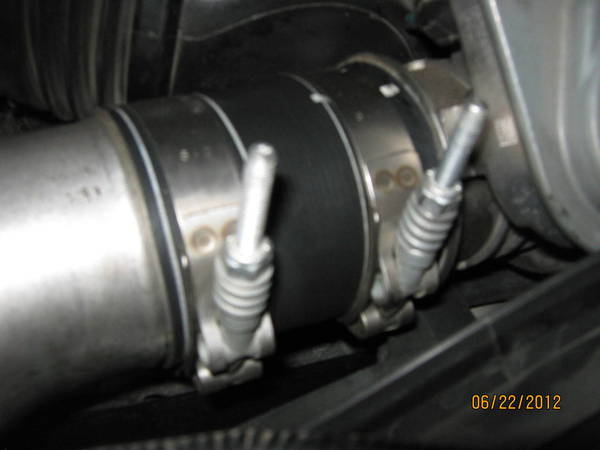

pass side CAC hose



[blacksnapon]

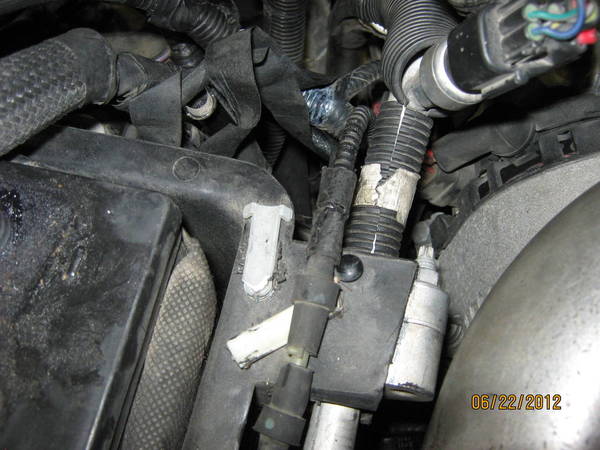

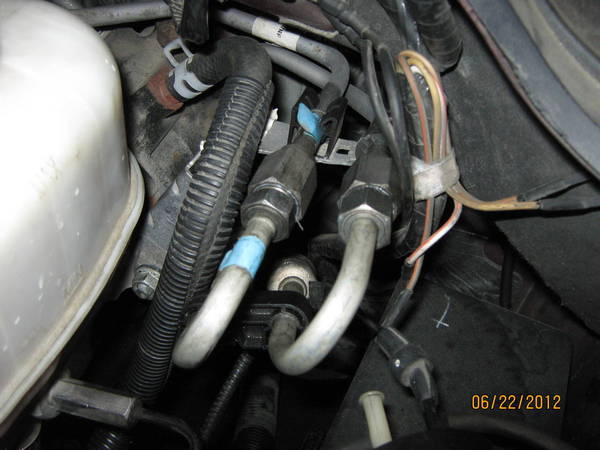

a/c line on receiver drier



[blacksnapon]

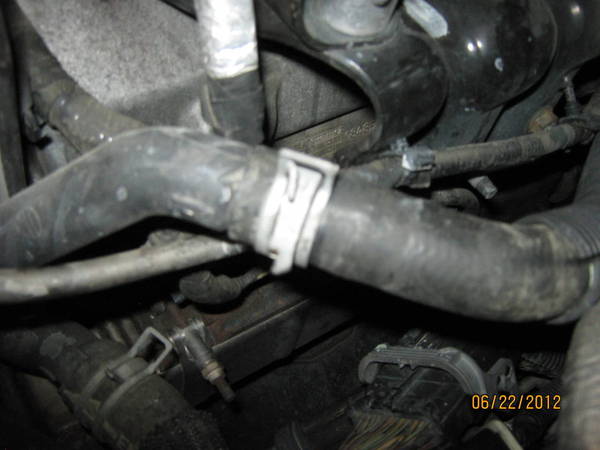

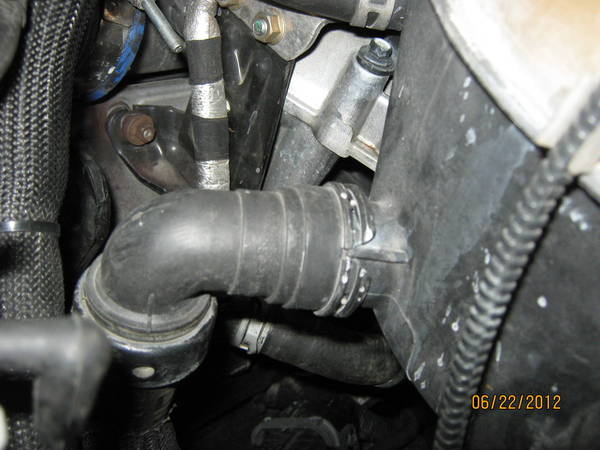

remove clip and disconnect upper radiator hose



[blacksnapon]

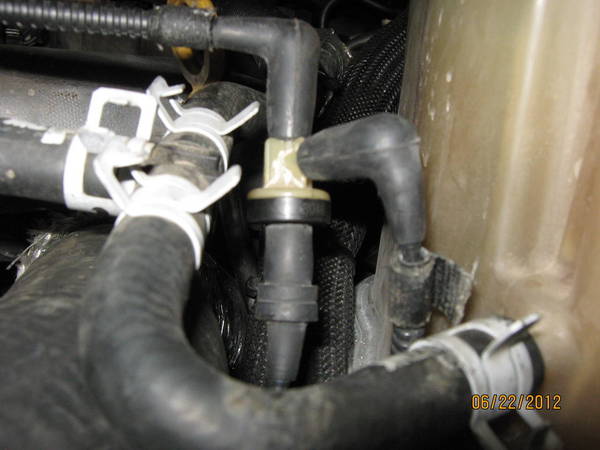

hoses on fuel and turbo cooler



[blacksnapon]

drain p/s reservoir and disconnect 3 hoses on reservoir



[blacksnapon]

disconnect hydro boost lines



[blacksnapon]

disconnect 3 connectors and remove master cylinder (set aside)



[blacksnapon]

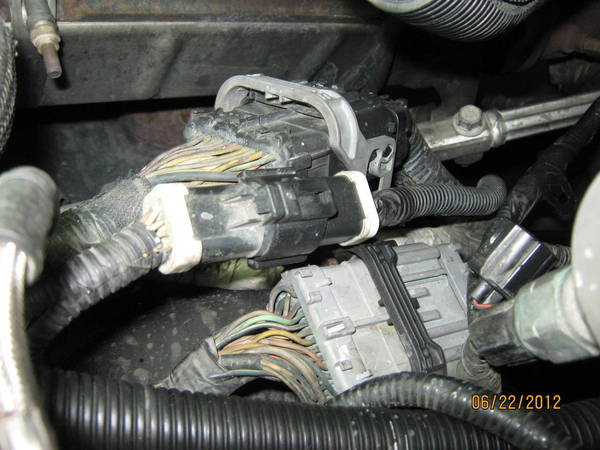

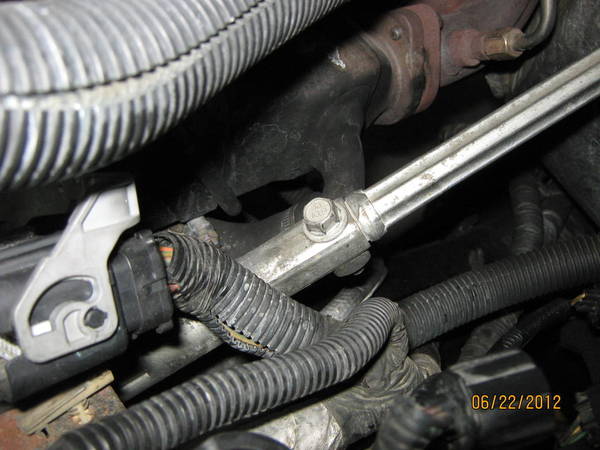

driver side heater hose, steering shaft, and 3 large connectors by shaft



[blacksnapon]

p/s line and fog light connector



[blacksnapon]

2 trans cooler lines



[blacksnapon]

hood release lever, set the rack and lift the cab



[blacksnapon]

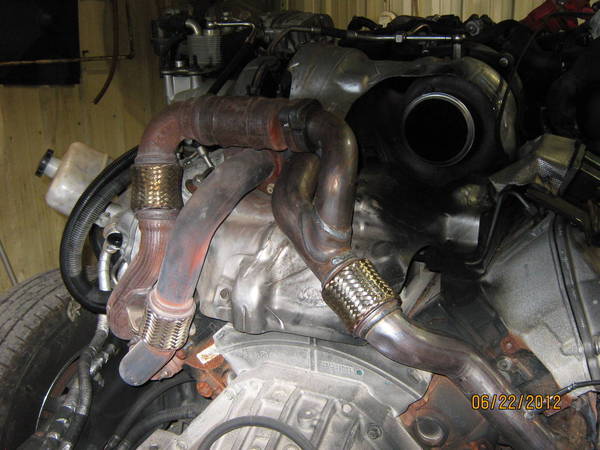

remove exhaust pipes



[blacksnapon]

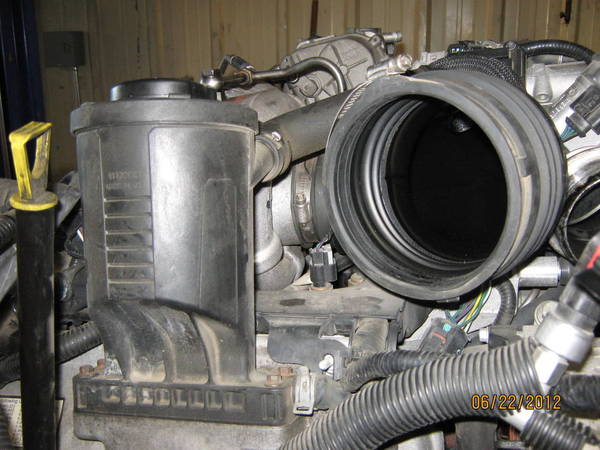

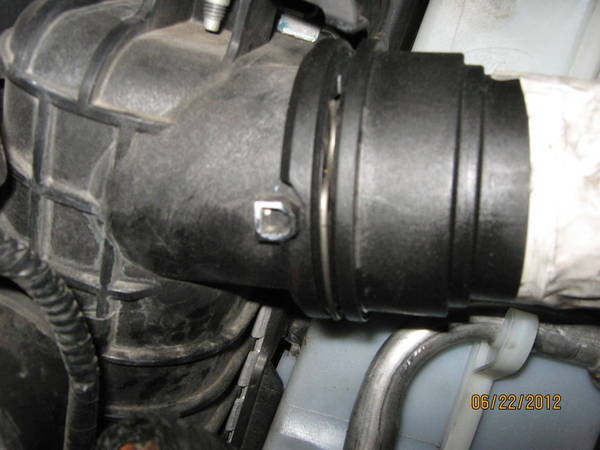

remove oil separator and air intake hose



[blacksnapon]

oil supply banjo bolts on turbo
