Rough outline of fan shroud
radialarm

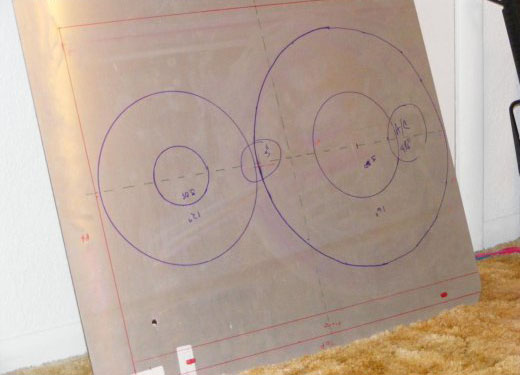

Rough outline of fan shroud

Shows rough layout of fans and clearance areas with distance measurments. This draft shows 2 fans, but the final product I only used 1 fan.
